Extend your RS-232 device up to 1000 feet away from your computer.

Now you can extend your RS-232 peripherals to a remote location 1000 feet (300 meters) away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.

How It Works

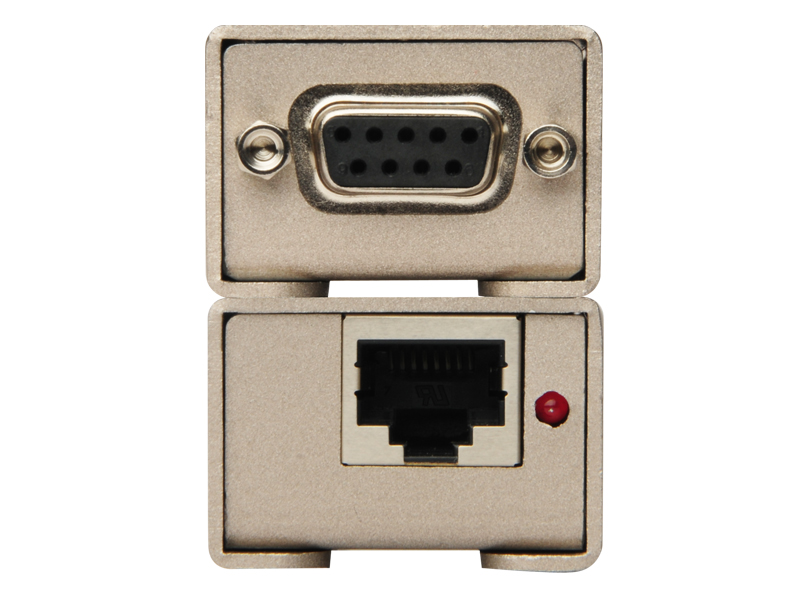

The RS232 Extender sender unit connects to your computer using the supplied cable. The extended RS-232 device connects to the receiver unit. CAT-5 cables connect the send and receive units - up to 1000 feet away. The sender is powered by a 5 volt power supply, which will also power the receiver via the CAT-5 cable.

Features:

• Extends any RS-232 compliant device up to 1000 feet (300 meters) from the computer
• Supports the full 9-pin RS-232 standard with a maximum data transfer rate of 115,200 baud
• Perfect for digital signage applications
• Only one CAT-5e cable required for extension
• Power only required on Sender units

Package Includes:

• (1) RS232 Extender (Sender Unit) (EXT-RS232S)
• (1) RS232 Extender (Receiver Unit) (EXT-RS232R)
• (1) 6 ft. DB-9 Cable (CAB-DB9-6MF)
• (1) 5V/1A DC Power Supply (EXT-PS526AIPN)
• (1) Quick-Start Guide (QSG-RS232)
