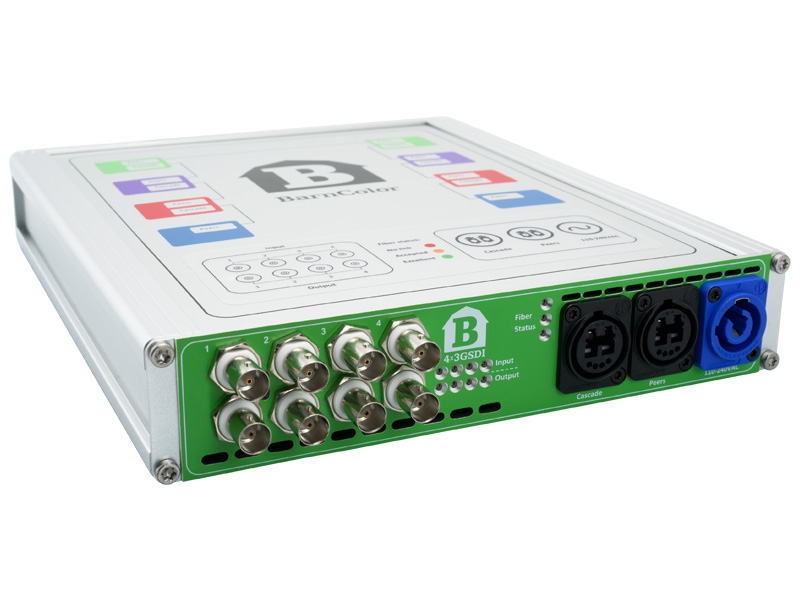

Barnfind Technologies BarnColor-3G-SDI-G
Barncolor 4x 3G-SDI (4 forward and 4 returns), color Green
Fiber port: Neutrik opticalCON DUO LITE; Power plug: Neutrik powerCON 20 A
2'495.00 CHF (2'697.10 CHF inkl. MwSt.)

Beschreibung

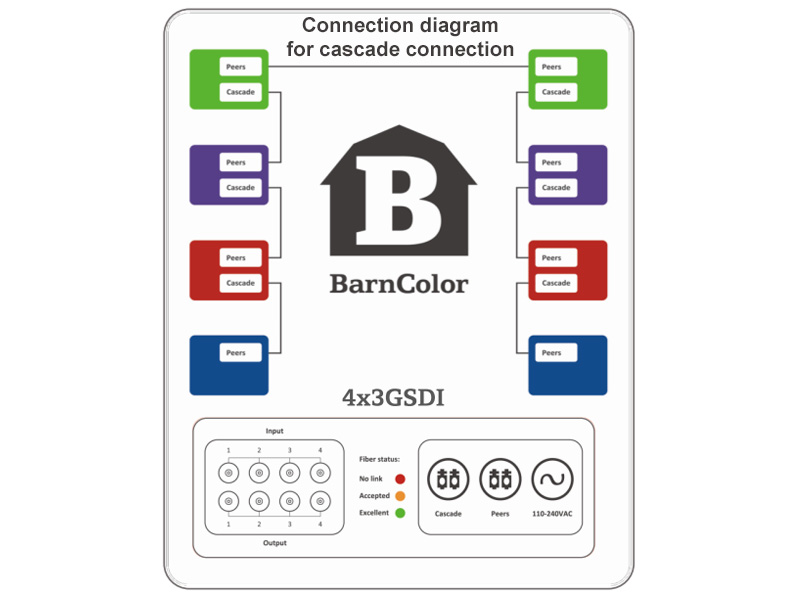

Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.

Für eine detaillierte Produktbeschreibung und technische Spezifikationen siehe Datenblatt unten

Features

  • BNC Ports: SMPTE 259M, 292M, 372M, 424M, DVB-ASI. Multirate reclocking of outputs 270Mbps – 3Gbps
  • Fiber Port: Neutrik opticalCON DUO LITE, also compatible with duplex LC. SMPTE 297M
  • Size: 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”), 1.4 kg
  • Power: Neutrik powerCON 20 A , 100-240VAC, 15Watt
