Description

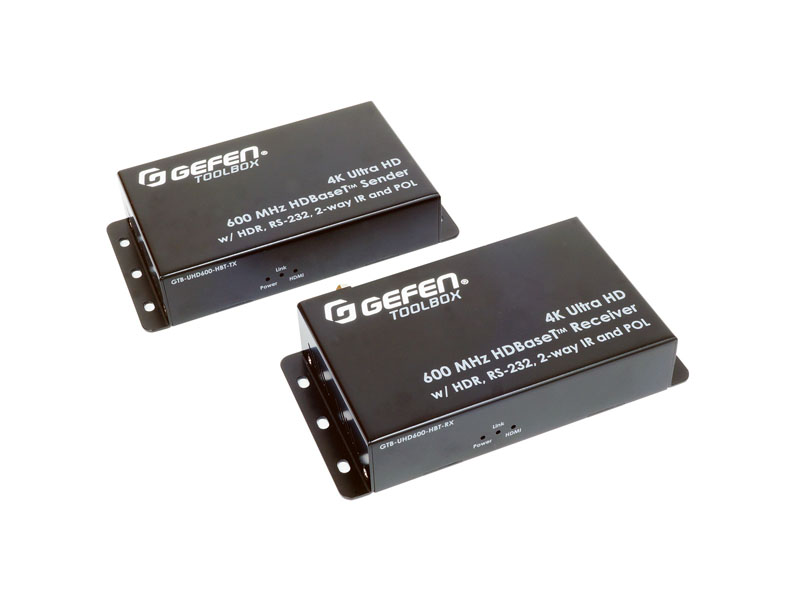

The Gefen GTB-UHD600-HBT is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 80 meters (264 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen’s visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported.

For more detailed description and product specifications, see datasheet below

Features

• Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
• Extends HDMI, RS-232, & Bi-Directional IR over a single CAT-5e/CAT-6A:
  • 4K Ultra HD (3840 x 2160 to 60 Hz, 4:4:4), up to 264 feet/80 meters (8-bit color)
  • 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4), up to 264 feet/80 meters (8-bit color)
  • 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz), up to 330 feet/100 meters (up to 12-bit Deep Color)
• HDMI Features Supported:
  • HDMI 2.0 (full bandwidth to 18.2 Gbps/600 MHz)
  • HDR-10: 10-bit color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Dolby® Vision™ HDR: 12-bit color at 4K 60Hz 4:2:0 and 4K 24 Hz 4:4:4
  • HDCP 2.2 and 1.4
  • 12-bit Deep Color (at 1080p)
  • Uncompressed LPCM digital audio up to 7.1 channels
  • HBR (High Bit Rate) digital audio up to 7.1 channels, including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • 3DTV pass-through
  • CEC pass-through
  • Lip Sync pass-through
• Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
• RS-232 2-way link between Sender and Receiver
• IR extension from Sender to Receiver and from Receiver to Sender
• Gefen’s Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
• Uses Gefen’s implementation of HDBaseT™ technology with proprietary algorithms and enhanced features
• Advanced EDID Management
• Firmware updatable via RS-232 using Gefen Syner-G™
• Locking power connector
• Plug & Play – no configuration or set-up required for most applications
• Surface mountable
• Compact enclosures are easy to install and can be hidden away

In the Box

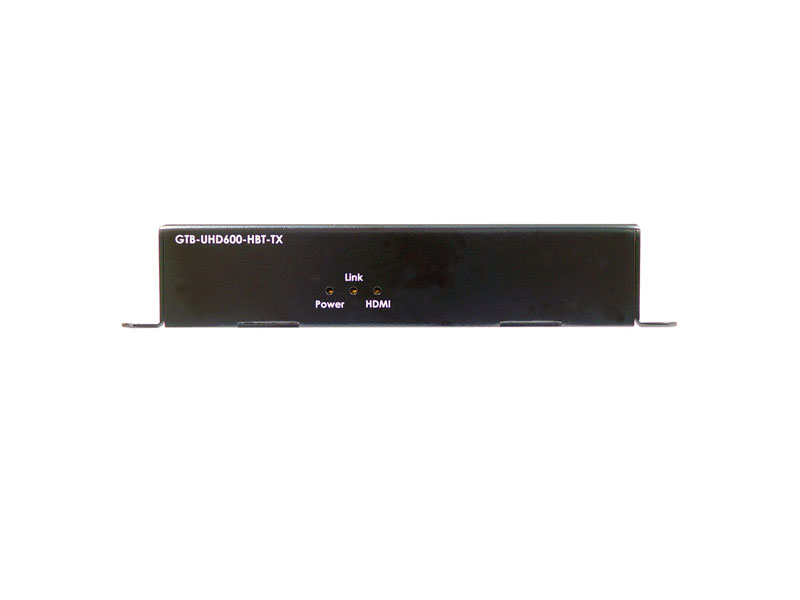

1x Sender Unit (GTB-UHD600-HBT-TX)

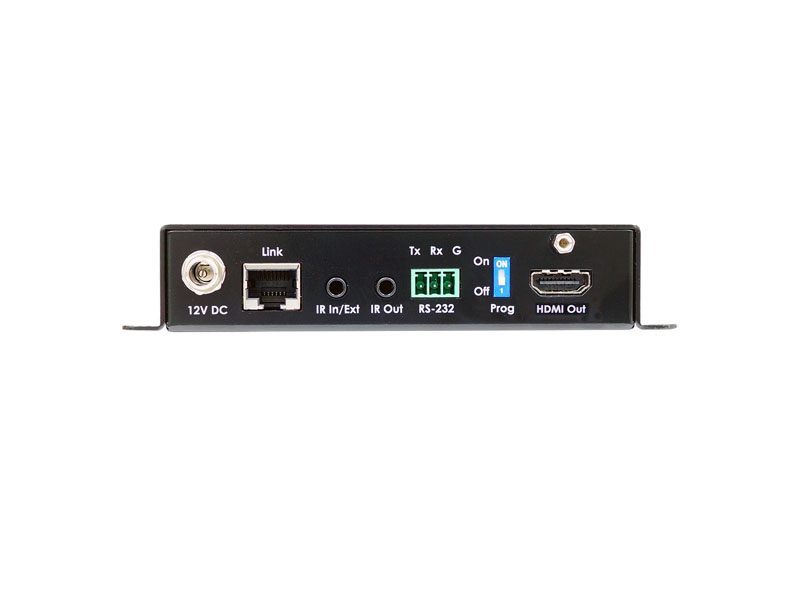

1x Receiver Unit (GTB-UHD600-HBT-RX)

1x HDMI-to-HDMI Male-to-Male Locking cable, 6 feet

1x IR Emitter (EXT-IREMIT)

1x IR Extender (EXT-RMT-EXTIRN)

1x 12V DC power supply with US/EU/UK/AU reginal AC plugs and 5.5mm/2.1mm DC plug (EXT-PS121.5AIP-LP-6)

1x Quick-Start Guide
